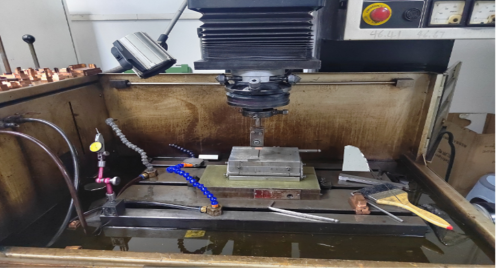

Steel molds are an essential part of the injection molding process. These molds are used to create the shape of the plastic parts during manufacturing. Steel is one of the most popular materials for making injection molds due to its durability, ability to withstand high pressure and temperatures, and capacity to produce parts with high precision.
Key Features and Benefits of Steel Molds:
-
Durability:
- Steel molds are highly durable and can last for many production cycles. They are resistant to wear, abrasion, and corrosion, especially if treated with coatings such as nitriding or chrome plating.
- Steel molds are ideal for high-volume production since they can endure the pressure and heat generated during the injection molding process without losing their precision or structural integrity.
-
Precision:
- Steel molds allow for the creation of high-precision parts with tight tolerances. This is important for industries like aerospace, automotive, and electronics, where accuracy is critical.
- Steel can maintain dimensional stability even when exposed to high temperatures and pressures, which ensures that each molded part is consistent with the next.
-
Heat Resistance:
- Steel molds are capable of withstanding the high temperatures that molten plastic reaches during the injection process (typically between 200°C and 400°C, depending on the material).
- Steel, particularly tool steels, can manage thermal cycling (heating and cooling during molding), making them a reliable choice for mass production.
-
Versatility:
- Steel molds can be designed for a wide range of applications and materials. They can accommodate various types of thermoplastic and thermoset materials, making them highly versatile for different industries.
- Steel molds can be used for simple to highly complex geometries, making them suitable for a broad spectrum of molded parts, including those with intricate features and fine details.
-
Long Service Life:
- Steel molds are designed to withstand tens of thousands or even millions of molding cycles, depending on the type of steel used and the design of the mold.
- Proper maintenance and care can extend the molds lifespan, reducing the need for frequent replacements or repairs.
Types of Steel Used for Molds:
-
Hot Work Tool Steel:
- Properties: Designed to withstand high temperatures and maintain hardness at elevated temperatures.
- Uses: Common in molds where high thermal conductivity and resistance to heat are required.
- Examples: H13, H11 (Chromium-based steels), which are known for their heat resistance and toughness.
-
Cold Work Tool Steel:
- Properties: These steels retain their hardness at lower temperatures, making them suitable for molds where higher wear resistance is required without as much concern for thermal stress.
- Uses: Typically used for molds with thin walls or parts that undergo lower temperatures.
- Examples: D2, A2, O1 (high carbon content steels) are often chosen for their hardness and wear resistance.
-
Stainless Steel:
- Properties: Stainless steel has excellent resistance to corrosion and oxidation, making it suitable for molds exposed to moisture or corrosive environments.
- Uses: Ideal for applications where surface finish and cleanliness are critical, such as in the food and medical industries.
- Examples: 420, 440C (martensitic stainless steels).
-
P20 Steel:
- Properties: This is a pre-hardened steel often used for molds that dont require the highest level of hardness but need a balance of toughness, wear resistance, and machinability.
- Uses: Commonly used for low to medium-volume production or when a balance of cost and performance is needed.
- Example: P20 is widely used in plastic molding for parts that dont require extreme precision or heat resistance.
-
Beryllium Copper:
- Properties: Not a steel but an alloy of copper and beryllium. It has exceptional thermal conductivity and is often used in mold cores or inserts that need to dissipate heat quickly.
- Uses: Commonly used for high-precision molds where cooling is crucial to controlling the quality of the molded part.
Mold Design Considerations for Steel Molds:
-
Cavity Design:
- Steel molds can have multiple cavities to produce multiple parts in a single cycle. The number of cavities depends on the complexity of the part and the volume of production.
- For highly complex parts, the mold may require intricate cavity designs, including undercuts, slides, or lifters to help eject the part without damaging it.
-
Cooling System:
- Effective cooling is essential to reduce cycle times and maintain part quality. Steel molds are designed with cooling channels that help dissipate the heat from the molten plastic during the molding process.
- Proper cooling can significantly impact the uniformity of the molded part, reduce warpage, and prevent defects like sink marks.
-
Mold Surface Finish:
- Steel molds can achieve a variety of surface finishes, from rough to highly polished. The finish of the mold will affect the appearance and texture of the molded part.
- Polished molds are used to produce shiny, high-quality surfaces on plastic parts, while textured molds can create matte or patterned finishes.
-
Mold Maintenance:
- Regular maintenance of steel molds is important for ensuring consistent part quality and extending the mold’s lifespan.
- Maintenance tasks include cleaning, checking for wear, inspecting cooling channels, and re-polishing the surface if needed.
